24h Fixed C6H6 Gas Detector With PID Sensor To Prevent Cancer For Human Body

  • 1
  • 2
  • 3

Brand Name : SZYUANTE

Model Number : YT-95H

Certification : ATEX/CE

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 pieces/week

Delivery Time : 3-5 working days

Packaging Details : Aluminum Suitcase

Detected gas : C6H6/Benzene

Sensor Principle : PID

Measure Range : Customized

Resolution : Customized

Install Method : Wall-mounted

Power Supply : 24V DC

Weight : ≤1.6kg

Product Size : 180*150*90mm

Warranty : 1 Year

Color : Blue

Material Case : Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel

Explosion-proof Grade : Ex d IIC T6 Gb

Contact Now

24h Fixed C6H6 Gas Detector with High Precision PID Sensor to Prevent Cancer for Human Body

Product Profile

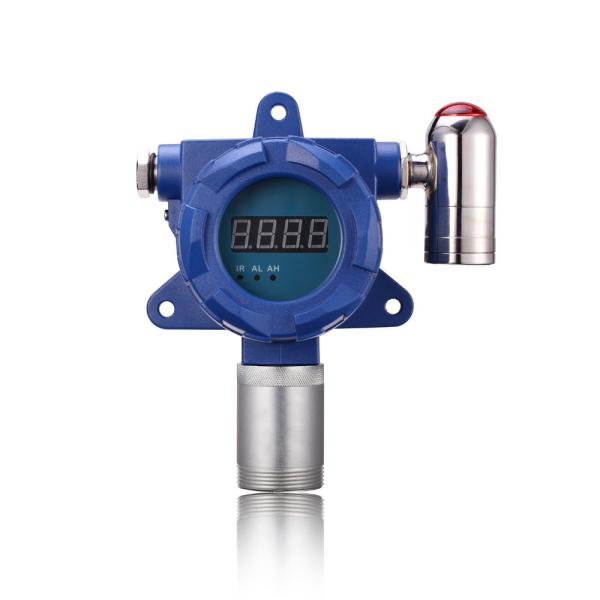

The YT-95H series gas detector, equipped with an alarm light, is a wall-mounted device designed for continuous monitoring of gas concentrations in diverse areas or pipelines. Leveraging top-tier global sensors and advanced microprocessing technology, this detector boasts features such as data display, high/low alarm functions, swift response time, high accuracy, and exceptional stability. Operating on a 24V DC supply, it provides 4-20mA, RS485, and relay signal outputs. Its explosion-proof design enhances its applicability across a vast array of industrial applications, ensuring maximum safety and reliability.

24h Fixed C6H6 Gas Detector With PID Sensor To Prevent Cancer For Human Body

24h Fixed C6H6 Gas Detector With PID Sensor To Prevent Cancer For Human Body

Features

  1. Operating Voltage Range: The unit operates on a wide voltage range from 12V to 36V DC, providing flexibility and compatibility with various power sources.
  2. Customizable Alarm System: Equipped with a dual sound and light alarm, it allows for the customization of alarm points to meet specific safety requirements.
  3. Remote Control Capabilities: An infrared controller is included for convenient remote modification of alarm point settings, zero point calibration, and address alteration.
  4. External Device Integration: The detector can generate one or two switch signals, enabling the seamless operation of external devices such as ventilation fans or solenoid valves.
  5. Durable Enclosure: Constructed from a combination of die-cast aluminum and stainless steel, the enclosure ensures durability and resistance to corrosion. It also features an alarm light for visual indication.

Product Specifications​

Gas detected C6H6/Benzene
Detection principle PID
Install method Wall-mounted (according to the detected environment)
Measure range Customized
Resolution Customized
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg

Product Application

  • Industrial Manufacturing: The YT-95H series gas detector is specifically designed to monitor toxic and explosive gas concentrations in industrial settings like factories, mines, and oil refineries. Its prime objective is to safeguard workers from harmful gases and prevent potential explosions.
  • Environmental Monitoring: The YT-95H series is suitable for monitoring air quality in urban environments, buildings, and enclosed spaces. It excels at detecting pollutants such as carbon monoxide, nitrogen oxides, and volatile organic compounds, thereby promoting clean air and minimizing harm to human health.
  • Agricultural Applications: In the agricultural sector, the YT-95H series can be utilized to monitor harmful gas concentrations in greenhouses and animal farms. This ensures the safety of crops and livestock from potential poisoning.
  • Hazardous Locations: The YT-95H series is ideally suited for use in potentially explosive and corrosive environments, such as chemical plants, refineries, and offshore platforms. It reliably monitors toxic and explosive gas concentrations to ensure safety in these demanding locations.
  • Emergency Response: The YT-95H series is often deployed in emergency response situations, including fires, leaks, and other accidents. Its ability to quickly detect dangerous gases and provide early warnings supports rescue personnel in taking timely and appropriate action.

More environments can be applied.
